Johnson Thermal Systems (JTS) is a leading American manufacturer specializing in thermal management solutions. With decades of experience,  JTS designs and produces high-performance heat exchangers, coils, and custom thermal systems tailored to meet the specific needs of various industries. Their commitment to quality and innovation ensures that each product delivers optimal performance and reliability.

At Lincoln Associates, we proudly partner with JTS to provide our clients with top-tier thermal management solutions. Together, we offer expert consultation, custom designs, and seamless integration to ensure that your systems operate efficiently and effectively.

JTS Thermal Brochure

Product Offerings

JTS offers a comprehensive range of thermal management products, including:

  • Heat Exchangers: Custom-designed to meet specific thermal requirements, ensuring efficient heat transfer and system performance.

  • Coils: High-quality coils engineered for various applications, including HVAC systems, refrigeration, and industrial processes.

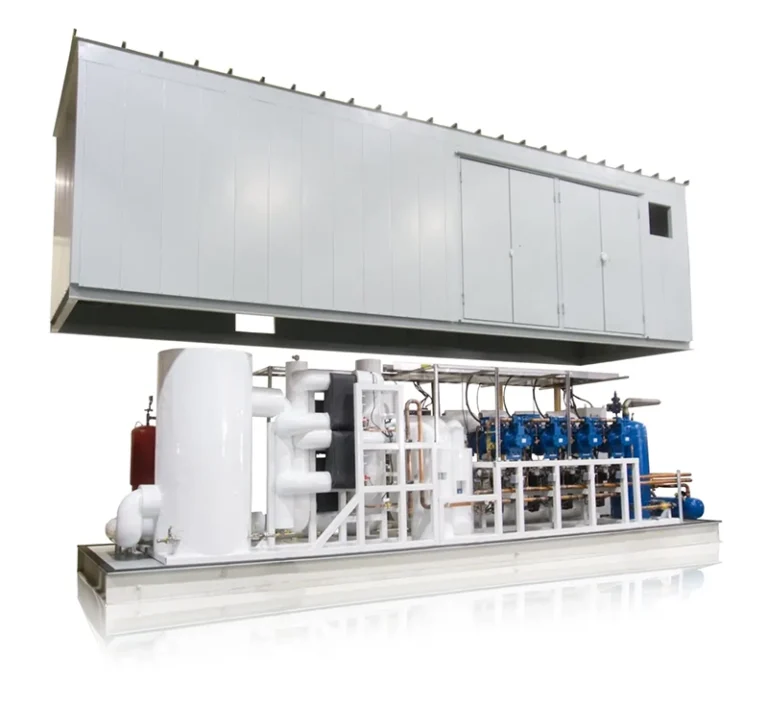

  • Custom Thermal Systems: Tailored solutions designed to address unique thermal challenges in diverse industries.

Each product is engineered with precision and built to deliver long-lasting performance, enhancing system efficiency and reducing operational costs.

Benefits of JTS Thermal Management Solutions

Custom-Engineered Designs

Tailored solutions to meet the specific thermal requirements of each application.

High-Quality Manufacturing

Products built to the highest standards of quality and durability.

Energy Efficiency

Designed to optimize energy use, reducing operational costs.

Comprehensive Support

Expert consultation, design, and integration services to ensure optimal system performance.

Industries Served

JTS provides thermal management solutions to a wide range of industries, ensuring efficient and reliable performance across various applications:

  • Commercial HVAC: Providing efficient heating and cooling solutions for commercial buildings.

  • Industrial Processes: Tailored thermal solutions for manufacturing and industrial applications.

  • Refrigeration: High-performance heat exchangers and coils for refrigeration systems.

  • Renewable Energy: Thermal management solutions for renewable energy systems, enhancing efficiency and performance.

Learn More
Lincoln Associates - Industrial HVAC Air Curtains Experts in Tampa, Florida

Lincoln Associates

Contact Lincoln Associates Today.

*Our Customer Support Team will contact you within 24 hours during normal business operations.

Scroll to Top
Evaporator Coil - Single-Circuit

Single Circuit

Evaporator Coil - Intertwined

Intertwined

Evaporator Coil - Split Face

Face Split face

Tube Diameter

Use a caliper or tape measure to determine the outside diameter of the tubes.

If necessary, remove insulation to see the incoming and outgoing lines. Measure the diameter of the outside of the line to help determine connection size.

Standard connection types are MPT (male pipe thread), FPT (female pipe thread), and Copper Sweat Connection. MPT is threaded on the outside, FPT is threaded on the inside, and Copper Sweat is used for soldered connections

Fins per Inch

Using a ruler, count the number of fins on the coil within one inch. Normal fin counts will be between 4 and 14 FPI.

Fin Length

Measure in the direction of the tubes, regardless of which direction the tubes are running.

Fin Height

Measure in the direction of the fin.

Single, Double, and Half Serpentine

Rows are counted in the direction of airflow, no matter how the coil is installed. You can count rows by looking at either the header end or the return bend end of the coil. Note that headers or return bends may not be evenly spaced across the coil.

Fluid coils—hot water, chilled water, and glycol water—regulate building air temperature by heating or cooling air in Air Handling Units (AHUs). Constructed with multiple rows of tubes, typically copper, these coils efficiently transfer heat between air and circulating fluids. They are vital for year-round comfort, accommodating diverse fluids like glycols and thermal oils for varied HVAC needs.

Condenser coils transfer heat from refrigerant vapor to the outdoor air, ensuring efficient cooling in HVAC and refrigeration systems. Constructed from materials like copper or aluminum to maximize heat transfer, these coils are vital for maintaining precise temperature control in industrial and commercial environments.

Steam coils utilize the latent heat of steam, released during condensation from vapor to liquid. They feature efficient condensate management to prevent water buildup and ensure uniform steam distribution. Available in configurations for high and low-pressure applications, steam coils are highly effective for heating air in a wide range of environments.

Evaporator coils absorb heat from indoor air to cool and dehumidify spaces by evaporating refrigerant from liquid to vapor. Located indoors, these coils are essential for maintaining comfortable environments in industrial and commercial settings, offering excellent performance in cooling, process cooling, and dehumidification applications. They are versatile for use in Air Handling Units (AHUs), central systems, or duct installations.
